Mature commercialized equipment

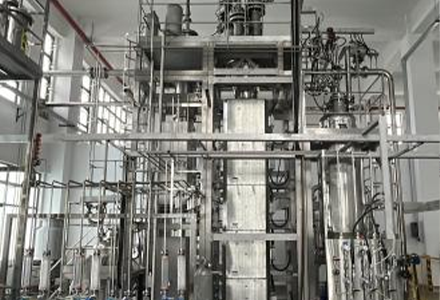

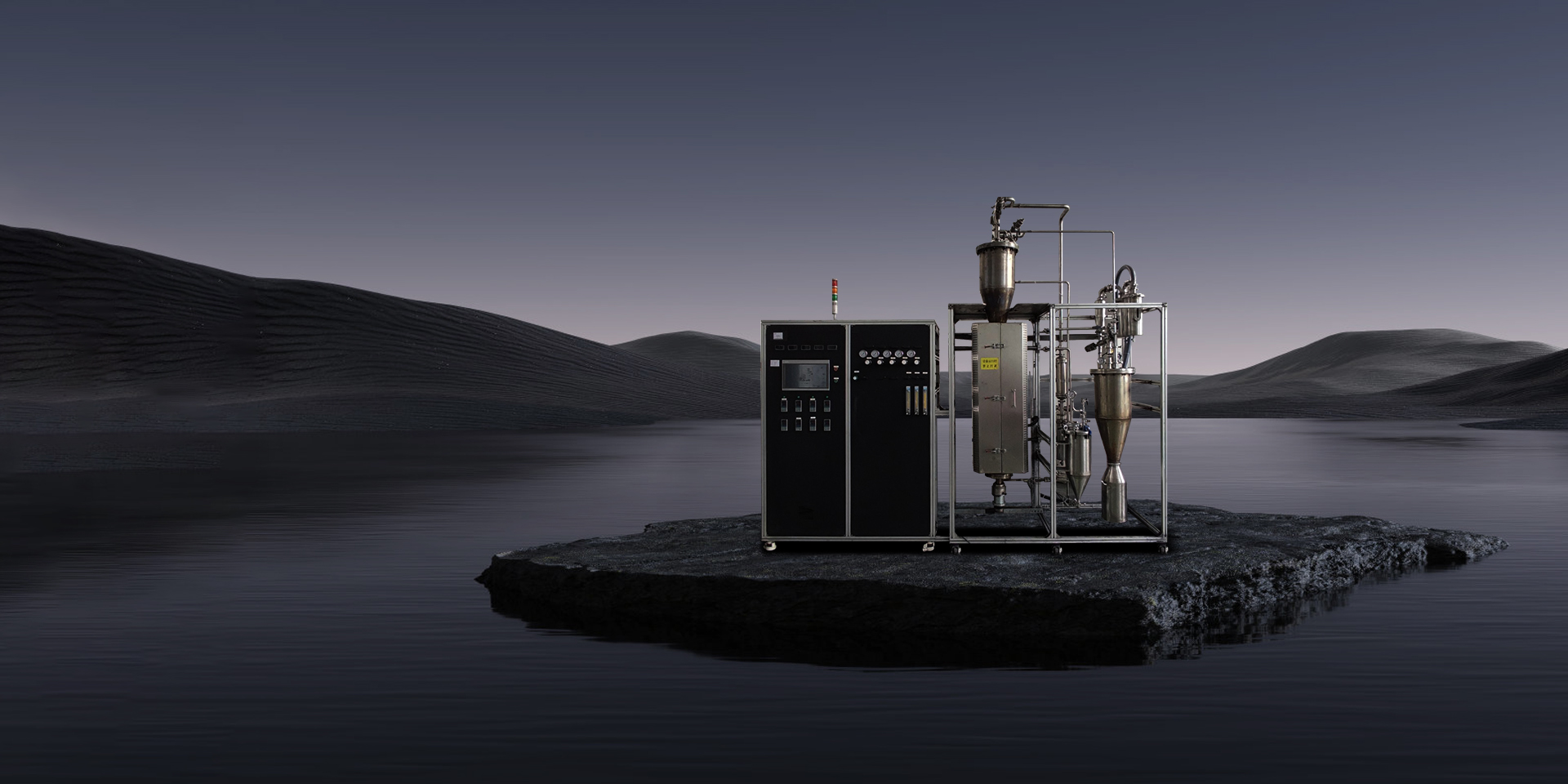

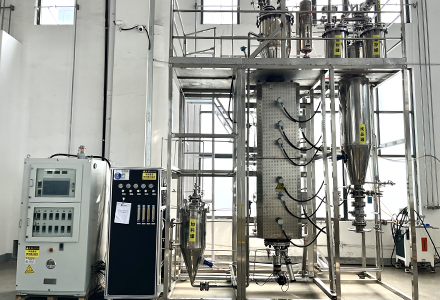

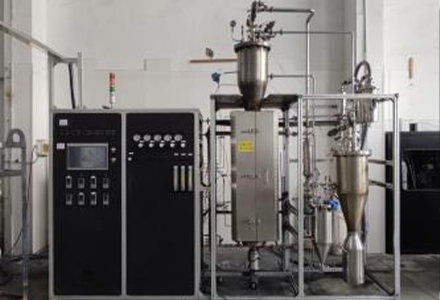

Fluidized bed reactor (FB-CVD) belongs to one of the company's star products. Powder materials form a fluidized state in the reactor for processes such as cladding and sintering. The CVD process with fluidized bed as the reactor has the characteristics of uniform coating and so on. It is suitable for fluidization of powder materials with D50=2~1000μm.
More than 1 order of magnitude higher than conventional fixed bed reactors and moving bed reactors.
Energy efficiency and contact are adequate, and the production capacity per unit bed is much greater than that of conventional fixed-bed reactors and moving-bed reactors.
There are clear advantages for both thermal diffusion and thermal replenishment for strong thermodynamic reactions.
Closer to commercially available equipment and significantly improved performance stability.
Compared with fixed-bed reactors, fluidized-bed reactors have an irreplaceable advantage in the consistency of temperature accuracy for temperature-controlled reactions.
Easy filling and discharging of materials, with significant improvements in energy consumption and productivity.
Meets explosion-proof requirements.
| Effective reaction volume | 1L~1000L，Higher volumes can be customized |
| Air supply | H2、N2、Ar、O2、CO2、CH4、C2H2、silane、vapor、C3H6 etc. |
| Operating temperature | ≤950℃，Higher temperatures can be customized |
| Material handling requirements | D50≥2μm |
| model | elegance | magnitude |
|---|---|---|
| FBCVD-10 | 1 KG | experimental grade |
| FBCVD-20 | 3 KG | experimental grade |
| FBCVD-100 | 20 KG | pilot level |
| FBCVD-500 | 100 KG | commercial grade |
| FBCVD-1000 | 200 KG | commercial grade |
